What are the instrument clusters digital display benefits?
The most well-known driver information system is the instrument cluster. Numerous displays have been incorporated into it during its development. They indicate correct functioning or malfunction of the monitored circuits. There are different versions depending on the vehicle type and equipment. The information is shown there in both digital and analogue format.

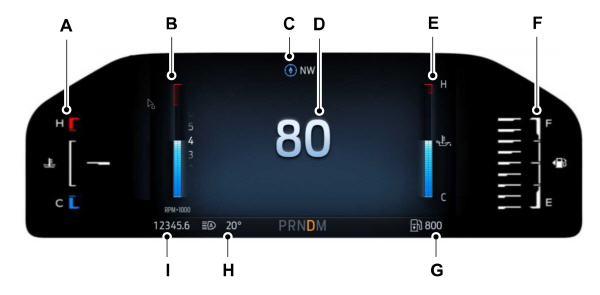

Instrument Cluster Overview - Vehicles With: 8 Inch Screen
Note: Depending on the setting you select, your cluster could look different than what you see here.
A Engine coolant temperature gauge.
B Tachometer.
C Compass.
D Speedometer.
E Engine oil temperature.
F Fuel gauge.
G Distance to empty.
H Outside air temperature.
I Odometer.
Note: The tachometer and engine oil temperature gauge can be configured on or off.

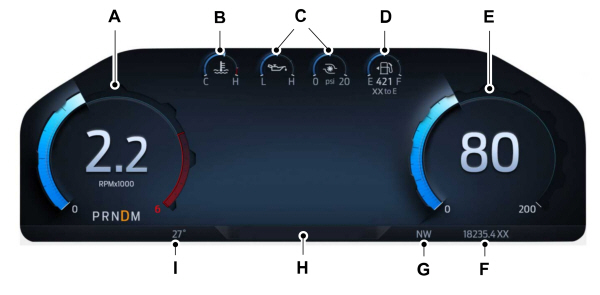

Instrument Cluster Overview - Vehicles With: 12 Inch Screen
Note: Depending on the setting you select, your cluster could look different than what you see here.
A Tachometer.
B Engine coolant temperature gauge.
C Configurable gauges.
D Fuel gauge.
E Speedometer.
F Odometer.
G Compass.
H Information bar.
I Ambient temperature.
